- PACKAGE INCLUDE: 32.8 ft 3/8″ dot air hose, 2 pcs 3/8″ brass tube tee fittings, 2 pcs 3/8″ brass straight union connectors, 4 pcs brass straight push connectors NPT thread, 4 pcs 90° elbows NPT thread, 1 pc tube cutter, 1 pc Teflon tape
- PREMIUM DOT FITTINGS: Our DOT air hose fittings are made of high-quality CA360 brass, meet D.O.T. FMVSS 571.106 approved, SAE J1131 air brake system requirements, with corrosion resistance, high-temperature ductility, low permeability and long service life
- PREMIUM PA12 DOT AIR HOSE: Our DOT air lines are made of high-quality Polyamide 12 nylon, meet D.O.T. FMVSS 571.106 approved, SAE J844 air brake system requirements, with corrosion resistance, high-temperature ductility, high pressure resistance and long service life
- HIGH-STRENGTH AIR HOSE: CheeMuii reinforced pneumatic tubing has high impact and wear resistance, can withstand higher working pressure, and has a longer service life. At the same time, it has a certain degree of flexibility and can be easily bent to a certain extent without affecting normal use
- MAX WORKING INTENSITY: The DOT brass fittings and DOT air lines can be operated in pressures from vacuum to 800 PSI and in temperatures from -40°F to +248°F (-40°C to +120°C). Note: see the tubing manufacturer’s recommendations for pressure and temperature mutations
- 【WIDE APPLICATION: The air hose & DOT fittings kit can be used for air suspension systems, perfect for semi truck/trailer/RV repair air line leak, also ideal for industrial workshops, daily garden or lawn mower repair, towing machine hose connection, etc
Product Description

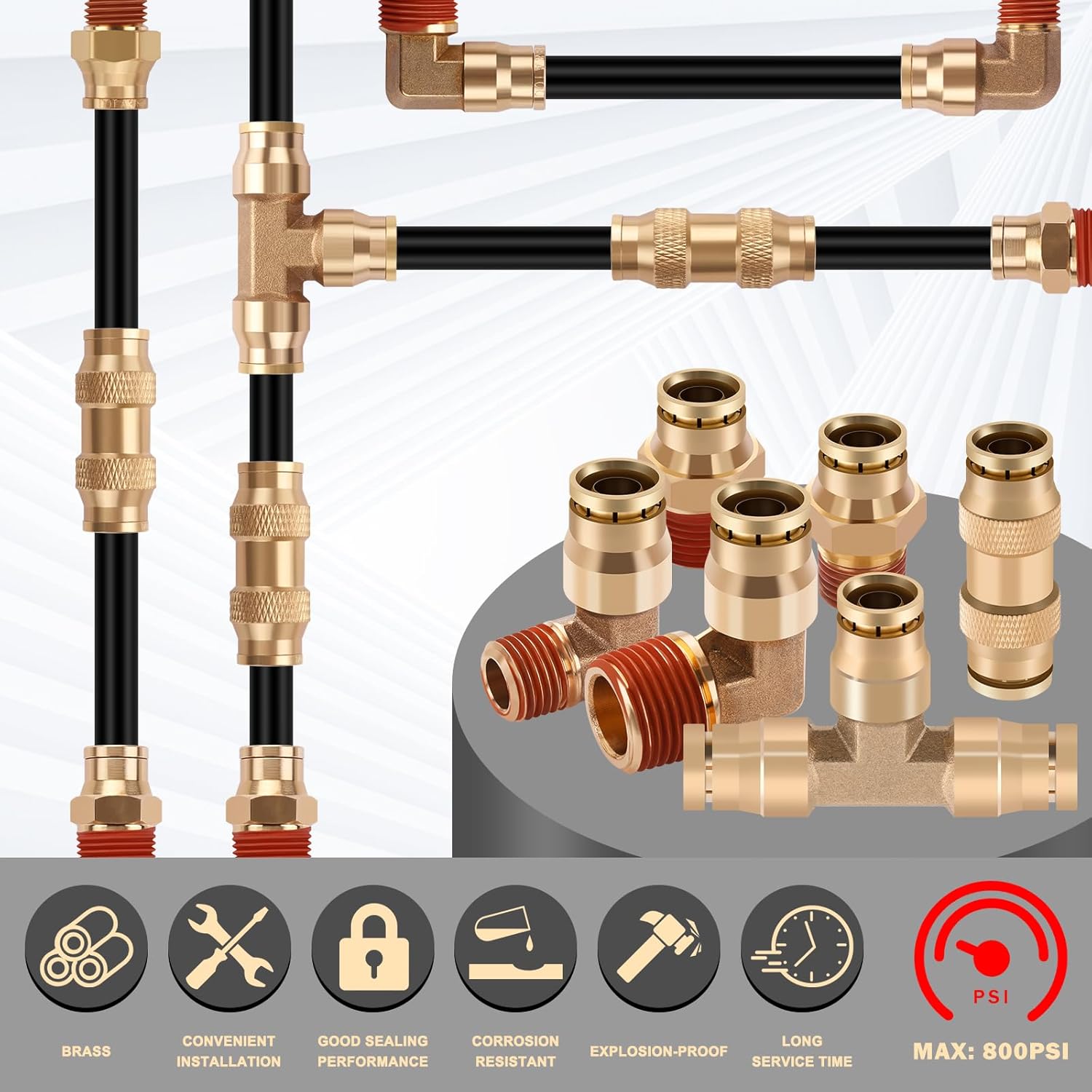

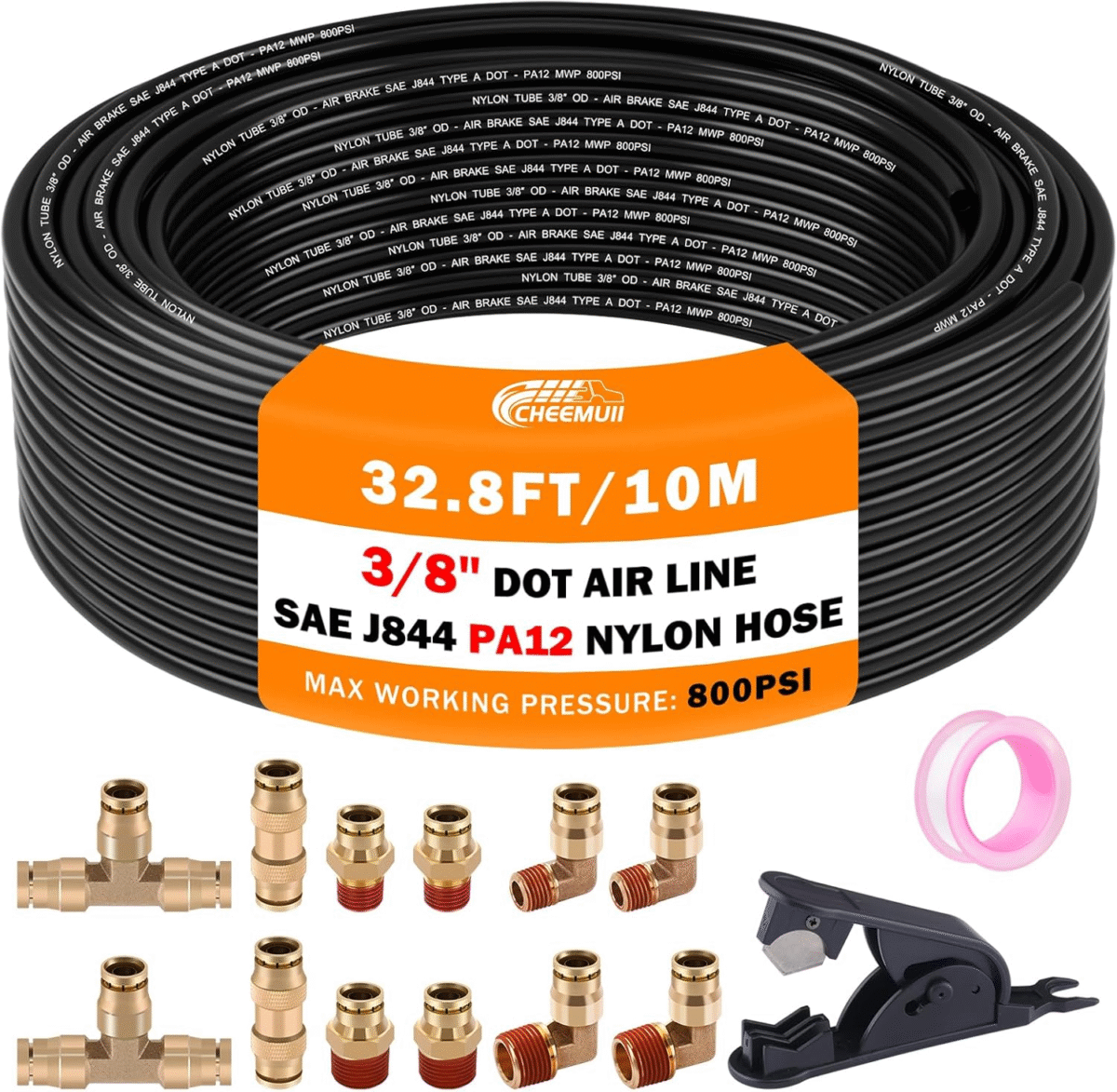

3/8″ DOT AIR LINE WITH BRASS DOT AIR LINE FITTINGS KIT

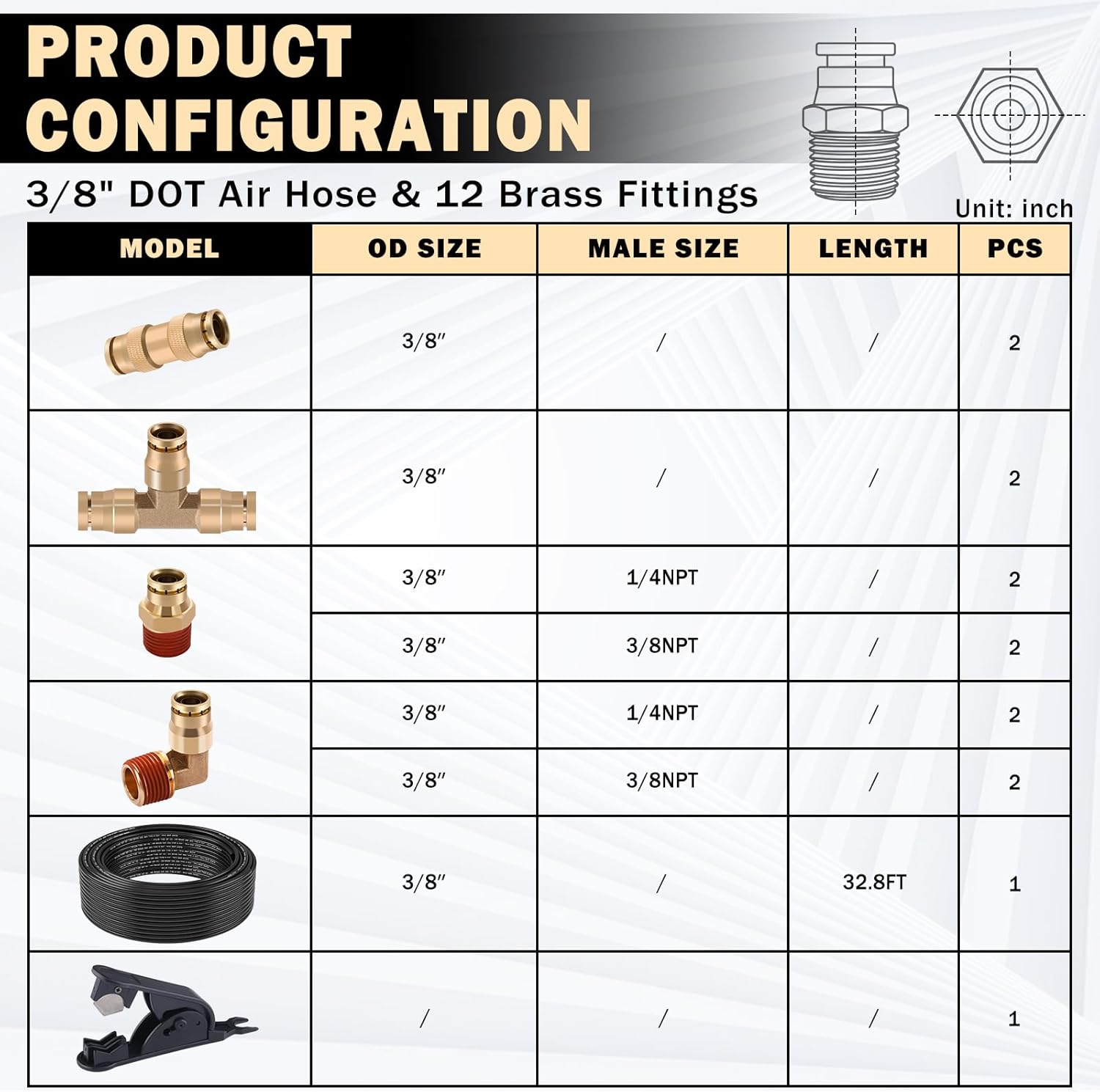

Product Specification:
32.8 FT 3/8″ Air Hose
2 PCS 3/8″ DOT Straight Union Connectors
2 PCS 3/8″ DOT Tube Tee Fittings
4 PCS DOT straight push & NPT thread
4 PCS DOT 90° elbows NPT thread
1 PC Tube Cutter & Teflon tape
- Air Hose & DOT Fittings Assortment Type: 3/8″
- Air Hose Material: Polyamide 12 nylon
- DOT Fittings Material: CA 360 Brass and High-strength Plastic

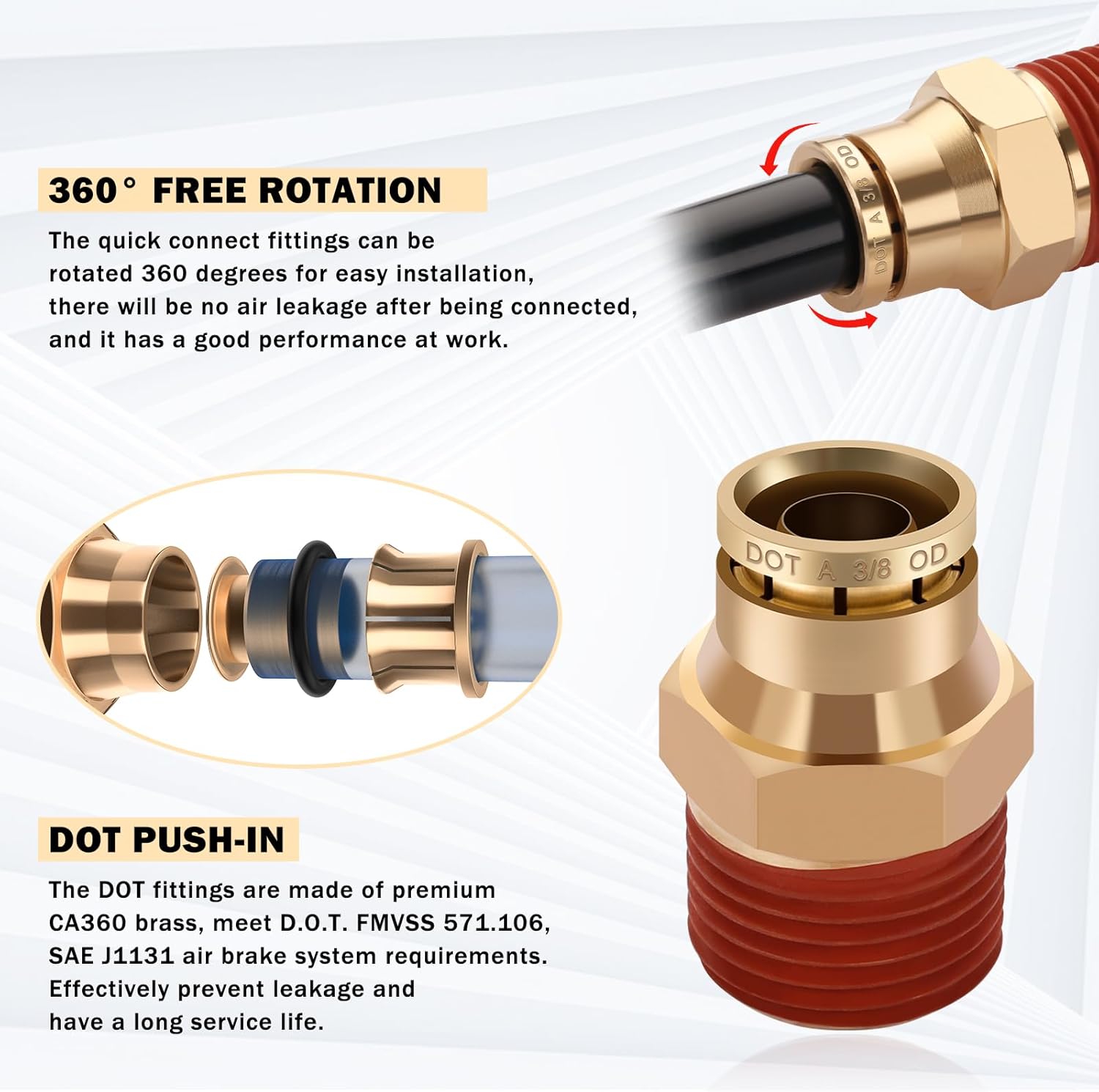

360° FREE ROTATION
CheeMuii DOT quick connect fittings Can be rotated 360 degrees for easy installation, there will be no air leakage after being connected, and it has a good performance at work.
DOT PUSH-IN
CheeMuii DOT push-to-connect fittings meet D.O.T. FMVSS 571.106, SAE J1131 air brake system requirements. Effectively prevent leakage and have a long service life.

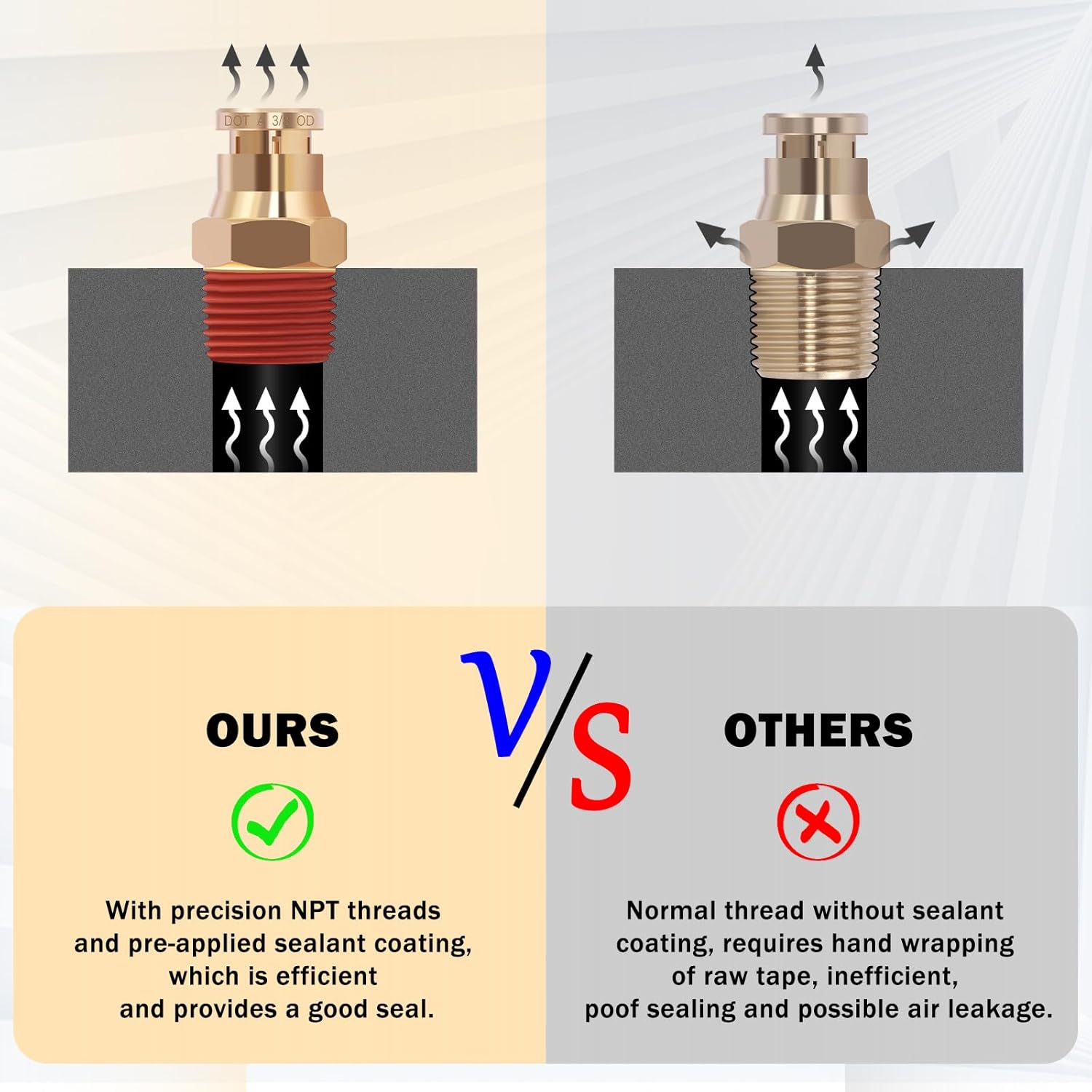

NO LEAKAGE
Precision NPT thread and pre-applied sealing coating, effectively prevent leakage
PREMIUM BRASS METERIAL
CheeMuii DOT air hose fittings are made of high-quality CA360 brass, with corrosion resistance, high-temperature ductility, low permeability and long service life.

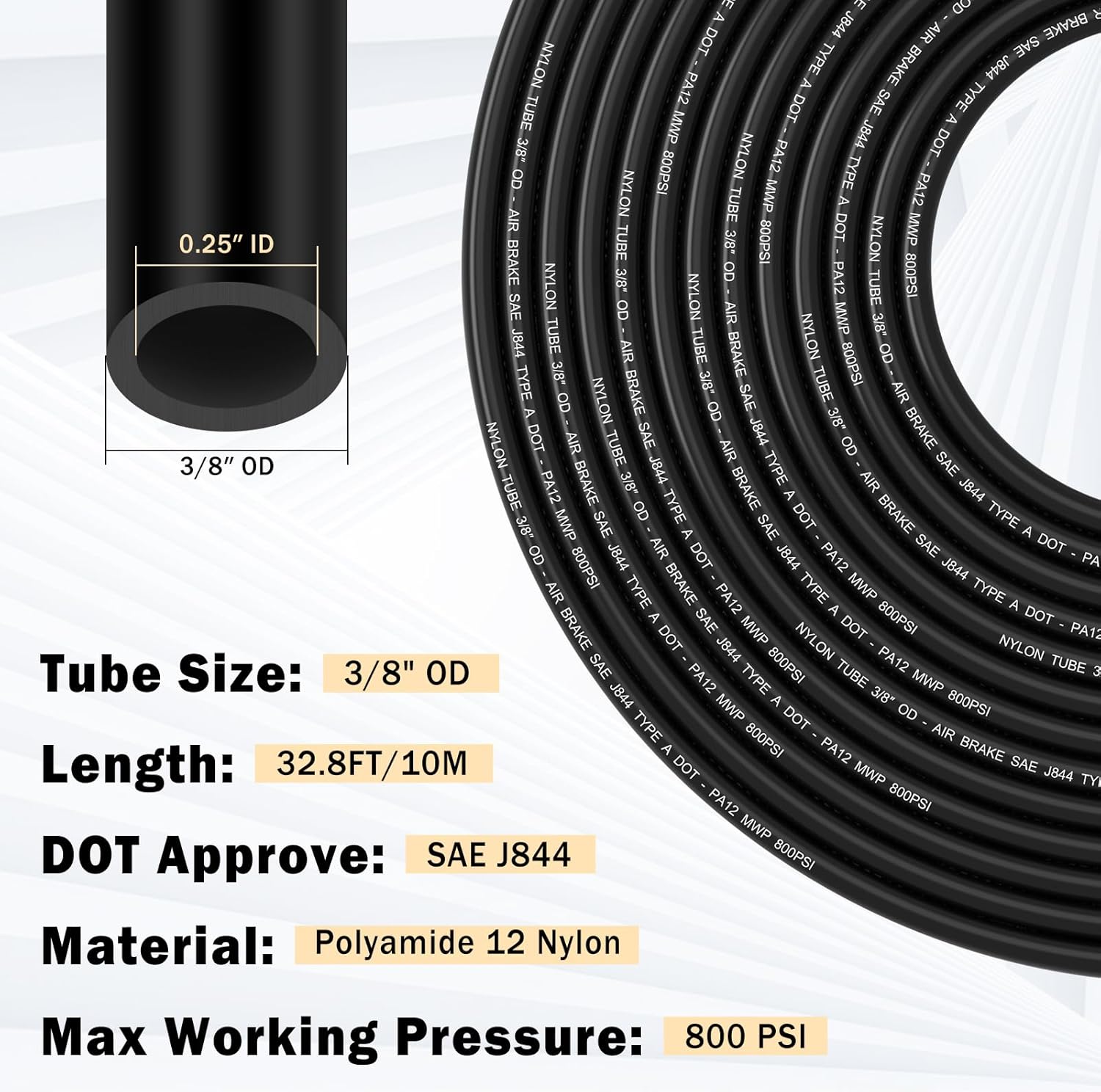

32.8 FT 3/8″ AIR TUBING
Length: 32.8 Feet (10 Meter)
OD: 3/8” (9.53mm)
Inner Diameter: 6.35mm.
FLEXIBLE & CONVENIENT

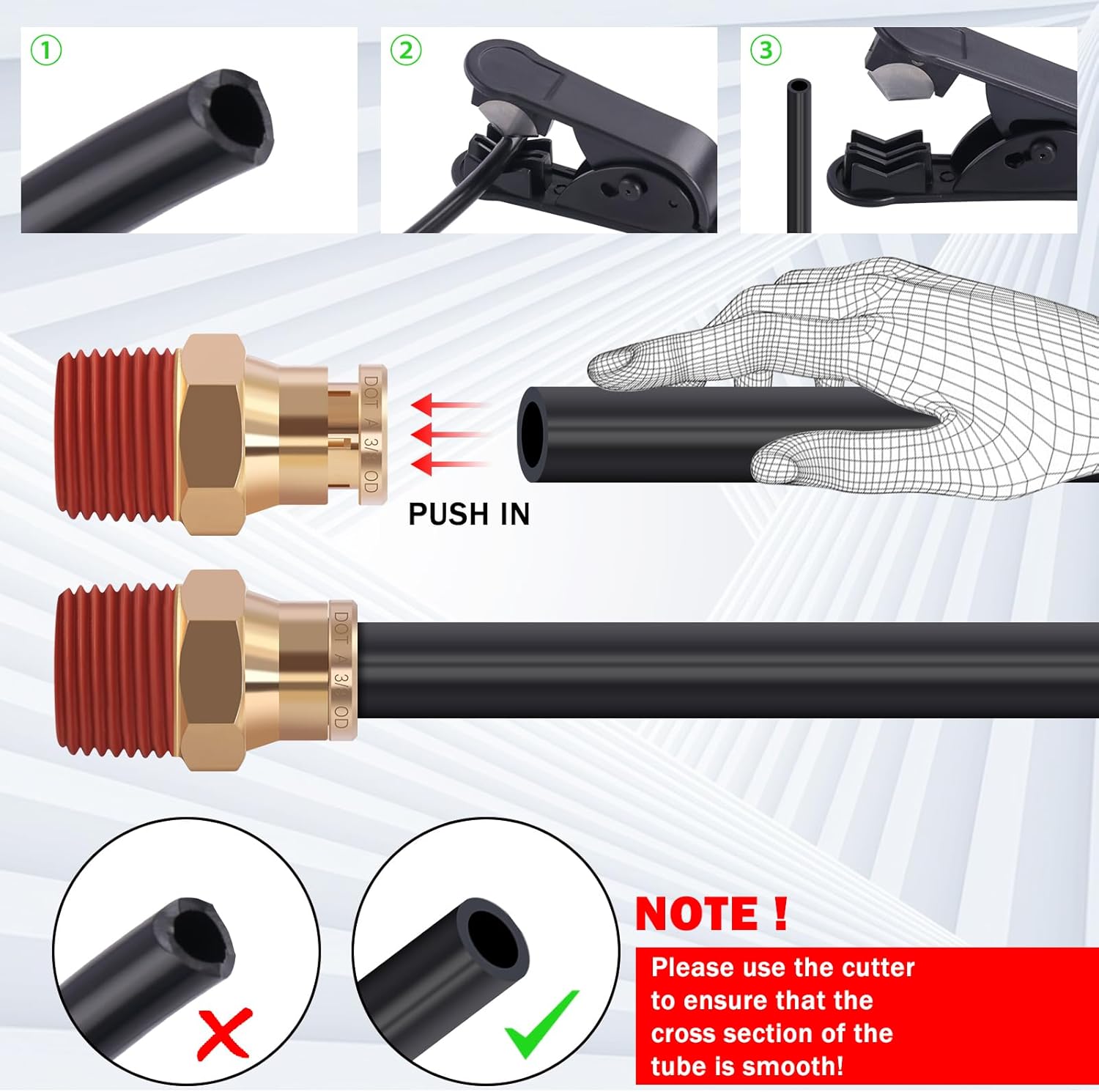

Smooth Surface of Trachea, Thickened Tube Wall, Higher Explosion-proof Performance Than Ordinary Tube, Hard and Stable. It‘s also equipped with a tube cutter for easy operation.
TEMPERATURE RANGE
Our PA12 polyamide tubes can Adapt to Temperature Differences in Different Areas, can Withstand High and Low Temperatures, Long Service Life. Temperature Range: -40°F to +248°F | -40°C to +120°C.
MAX WORKING PRESSURE
CheeMuii reinforced air hose has high impact and wear resistance, can withstand higher working pressure, and has a longer service life. Maximum working pressure：800 PSI.
